Hetzner NFS VLAN¶

Overview¶

Hetzner NFS VLAN is a Saltbox module that connects 2+ Hetzner servers using NFS and VLAN.

Role Currently Disabled

THIS INFORMATION IS OUTDATED AND DOES NOT WORK AS DOCUMENTED

DO NOT FOLLOW THESE INSTRUCTIONS IF YOU DO NOT KNOW HOW TO ADAPT THEM TO RECENT CHANGES IN BOTH SALTBOX AND HETZNER

Note 1: This comes with no support other than the instructions provided here.

Note 2: This setup has been tested to work with standard Unionfs/Rclone VFS setup. Using either MergerFS or any non-standard setup will require you to tweak the appropriate mounts. You can look at the roles to see what changes need to be done.

1. Installation¶

In this example, we'll set our Feederbox as the NFS server and our Mediabox as the NFS client - this is so that the feeder data can be available to the media server.

There are 3 phases to the setup. They are broken down below.

Hetzner Robot¶

Log into Hetzner Robot.

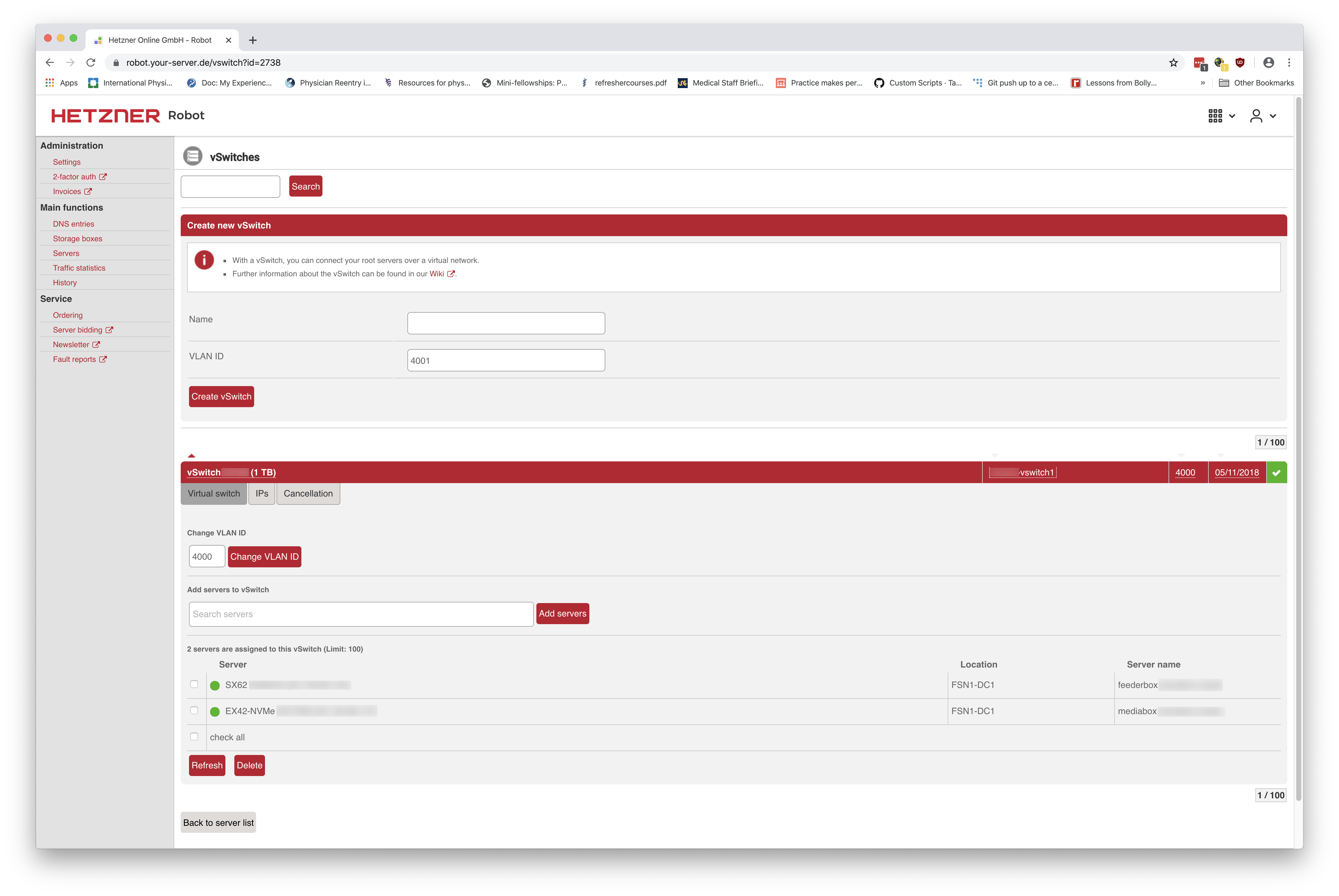

Create a VLAN (vSwitch) and add servers to it. Note the VLAN ID.

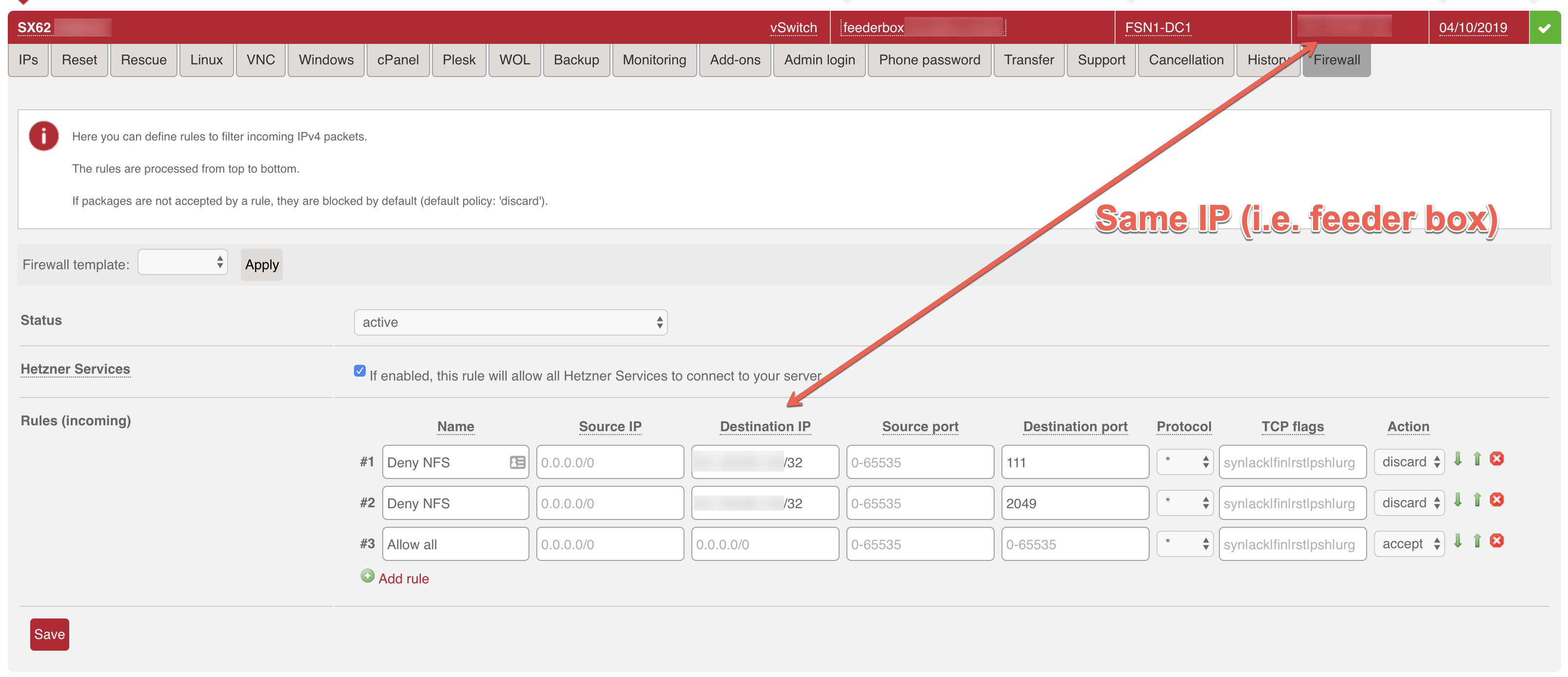

Setup Firewall.
- Mediabox:
- Feederbox:

NFS Server (Feederbox)¶

Setup the Ansible role config.
Add vlan_id.

mount_client setting is ignored for the NFS server (i.e. it will just use 2).

nano /srv/git/saltbox/hetzner_nfs.yml

hetzner_nfs:
  vlan_id: 4001
  mount_client: 3

Run Ansible role to configure the NFS server.
```
sb install hetzner-nfs-server
```

NFS Client (Mediabox)¶

Setup the Ansible role config.
Add vlan_id.

Add mount_client.

Note: mount_client will need to be either 3 or a number > 250.

nano /srv/git/saltbox/hetzner_nfs.yml

hetzner_nfs:
  vlan_id: 4001
  mount_client: 3

Run Ansible role to configure the NFS client.
```
sb install hetzner-nfs-client-mount
```

Uninstall¶

Simply run the following commands on their respective servers:

Uninstall NFS Server (Feederbox)¶

sb install hetzner-nfs-server-uninstall

Uninstall NFS Client (Mediabox)¶

sb install hetzner-nfs-client-unmount

Role Defaults¶

Variables can be customized using the Inventory. (1)

Example override

hetzner_nfs_init_overwrite_client: true

General

hetzner_nfs_init_overwrite_client

# Type: bool (true/false)
hetzner_nfs_init_overwrite_client: true

hetzner_nfs_init_overwrite_server

# Type: bool (true/false)
hetzner_nfs_init_overwrite_server: true
